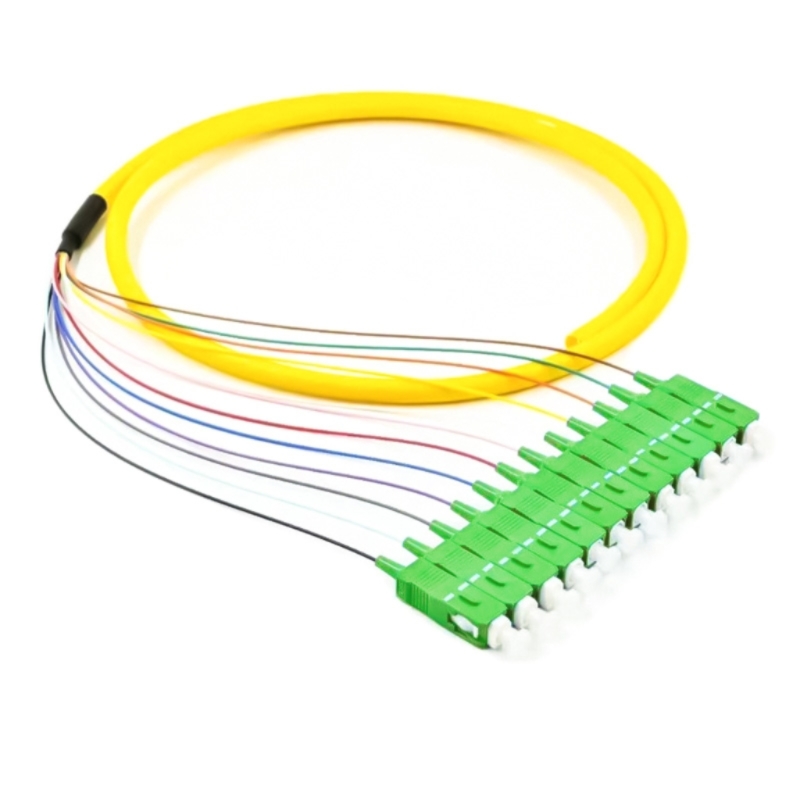

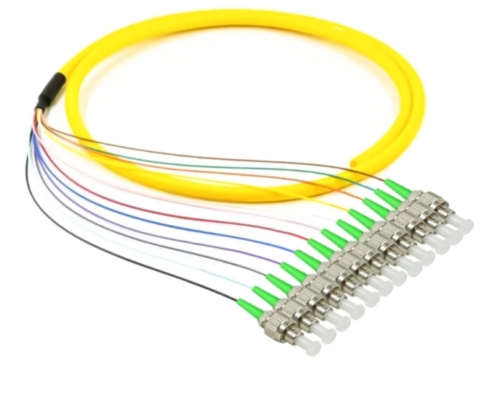

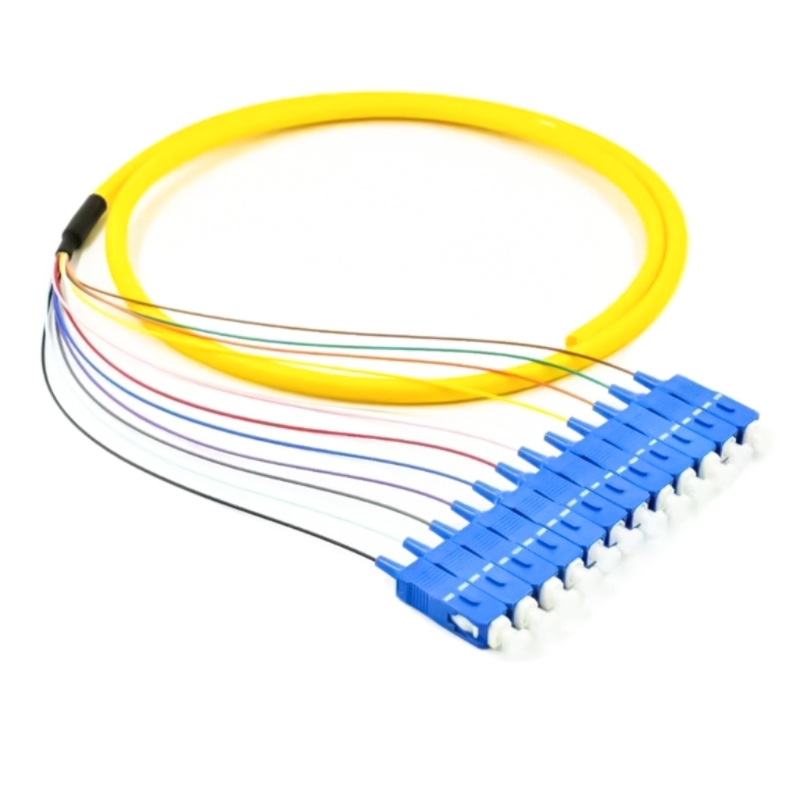

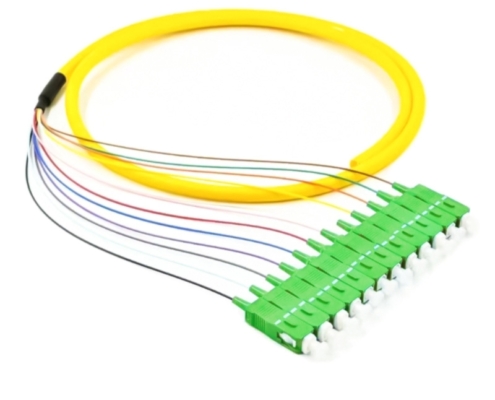

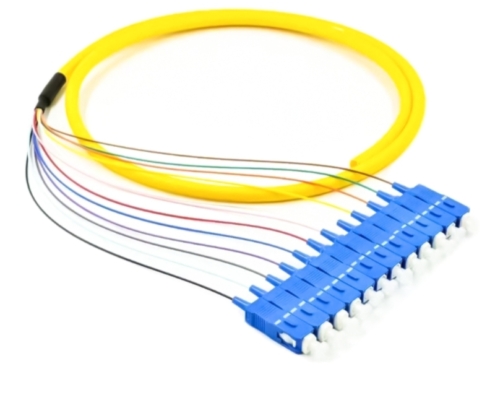

125um Bundled 12-Core Fiber Optic Pigtail

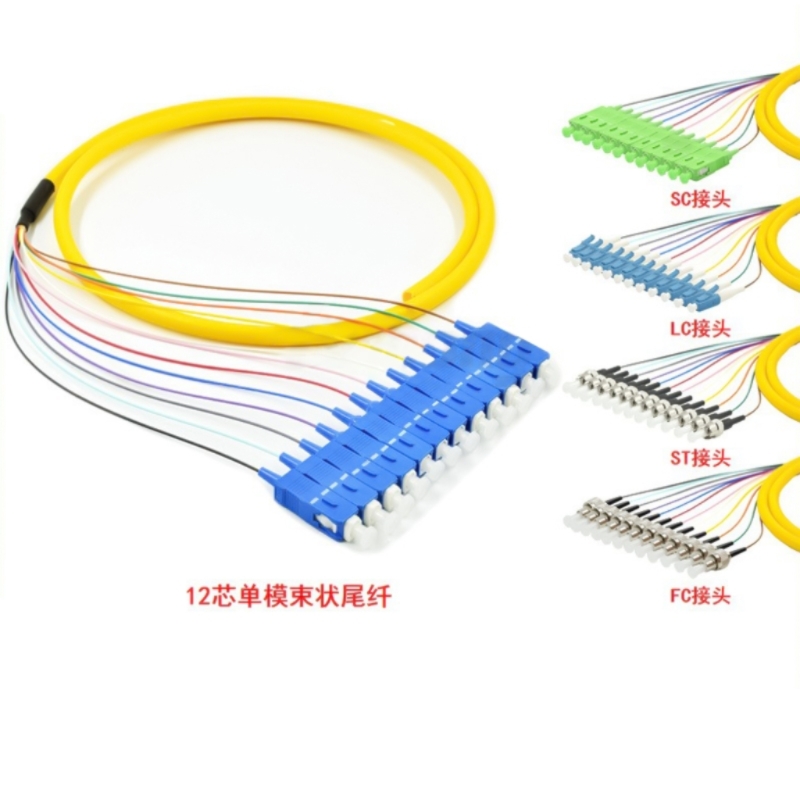

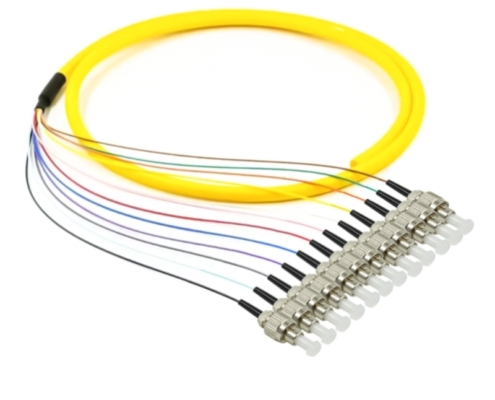

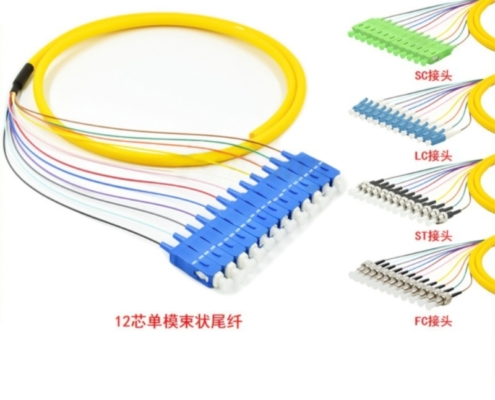

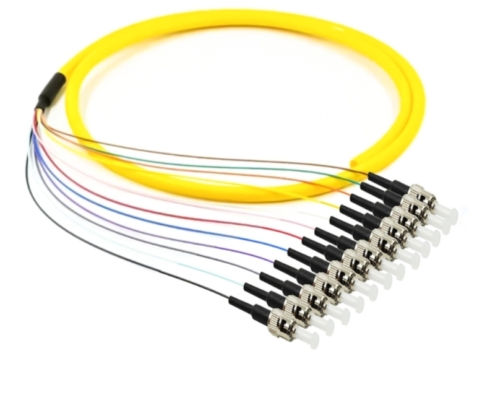

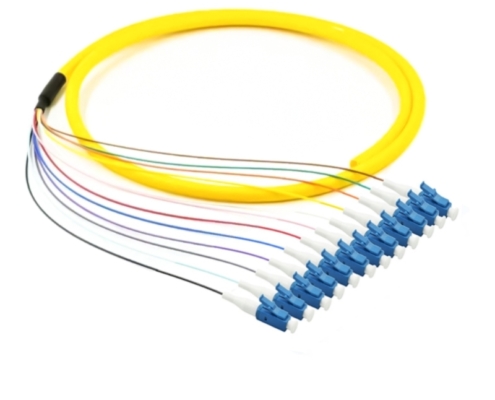

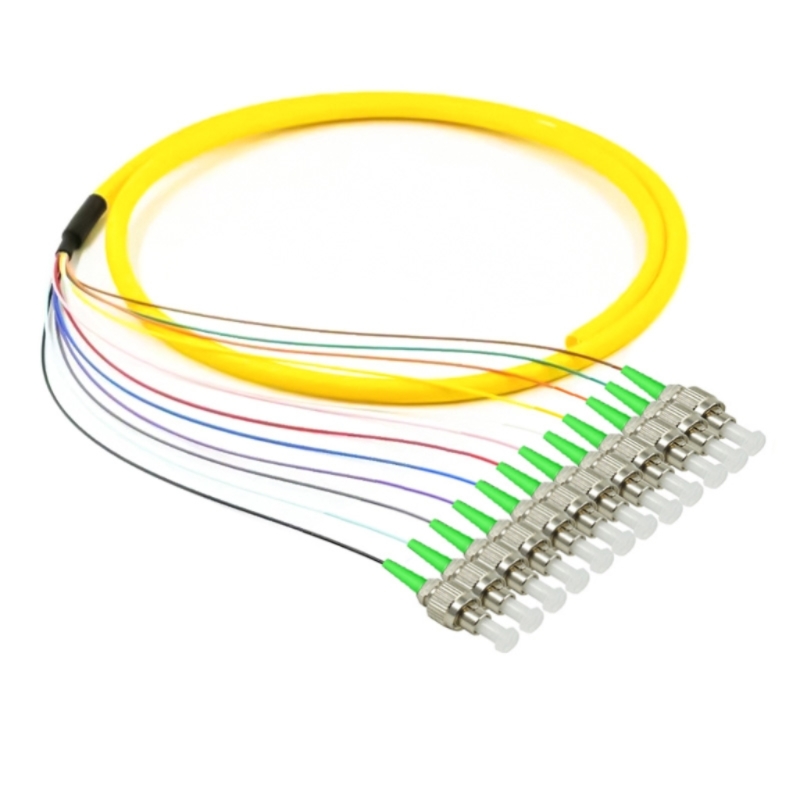

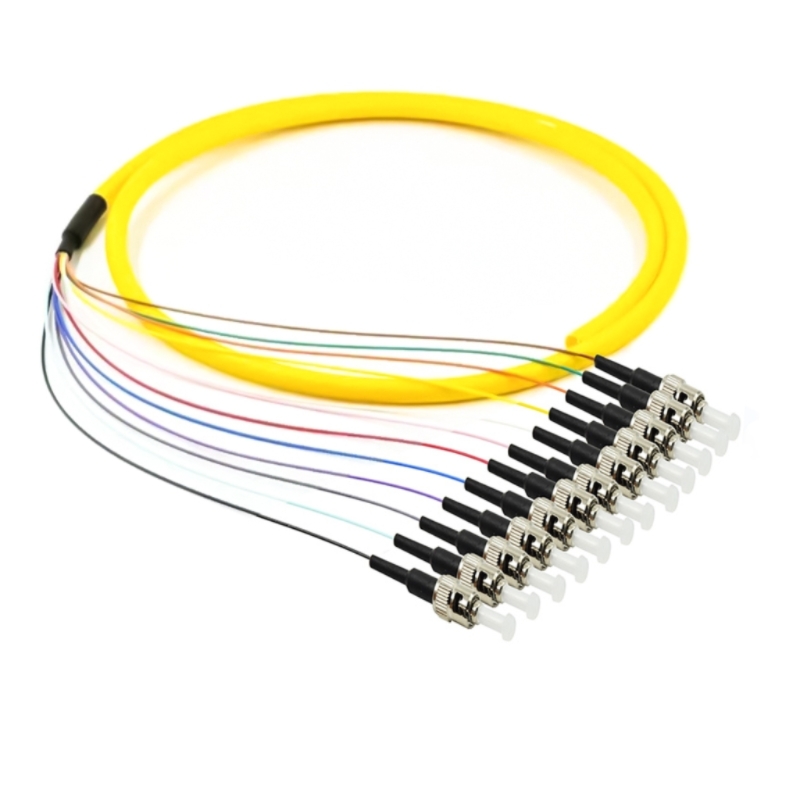

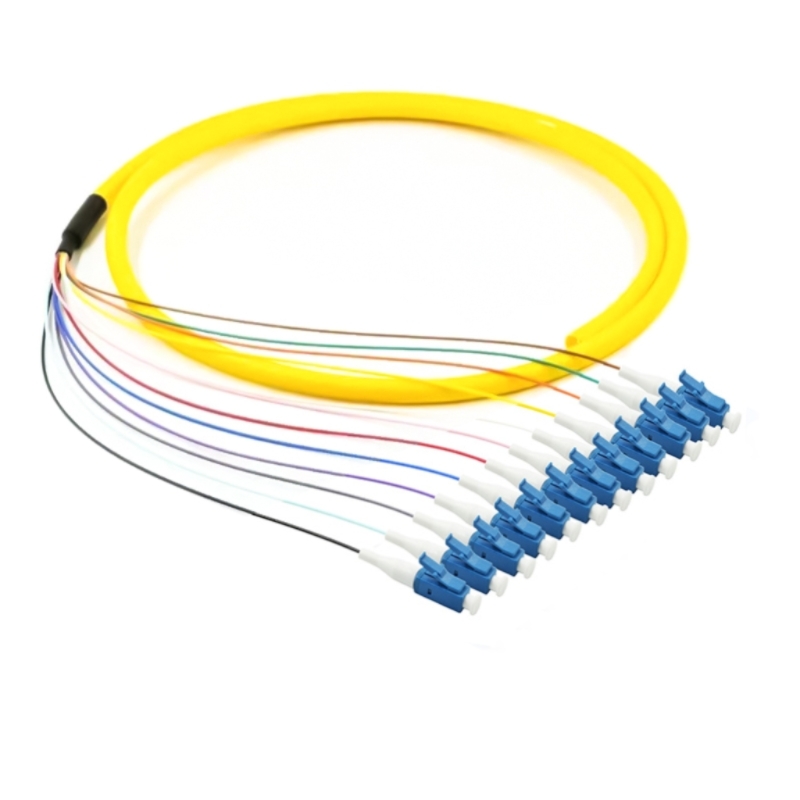

Product Name: SC/LC/FC/ST Single-mode Bundled 12-Core Fiber Optic Pigtail
Fiber Type: 9/125μm
Cable Model: Single Mode
Number of Fiber Cores: 12 Cores
Fiber Mode: G652D/G657A1/G657A2/G655
End Face Type: UPC/APC
Cable Diameter: 0.9mm/2.0mm
Wavelength: 1310nm/1550 nm
Insertion loss: ≤0.25dB
Return loss: Single-mode UPC>55dB
Single-mode APC>65dB
Multi-mode UPC>35dB
Service life: >1000 times
Operating temperature: -40℃—+85℃
Product standard: SC:YD/T 1272.3-2018 LC:YD/T 1272.1-2018
FC:YD/T 1272.4-2018 ST:YD/T 987-1998

Request Formal Quote

Share this product

Description Technical Data FAQ

Applications:

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical

Key Features:

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

Quality Assurance:

Our Patch Cords undergo rigorous testing to ensure they meet the highest standards of quality and performance. Quality assurance measures include:

- Performance Testing: Verifying data transmission rates and signal integrity to guarantee reliable connectivity.
- Durability Testing: Assessing the physical robustness of the cord to withstand harsh environmental conditions and mechanical stress.

What makes these patch cords waterproof?
- Our patch cords are equipped with advanced sealing technology and are rated IP67/IP68, ensuring complete protection against water and dust ingress.
Can these cords be used in extreme temperatures?
- Yes, our waterproof patch cords are designed to operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F).
Do you offer different cable lengths?
- Yes, our waterproof patch cords are available in various lengths to meet different installation requirements.
