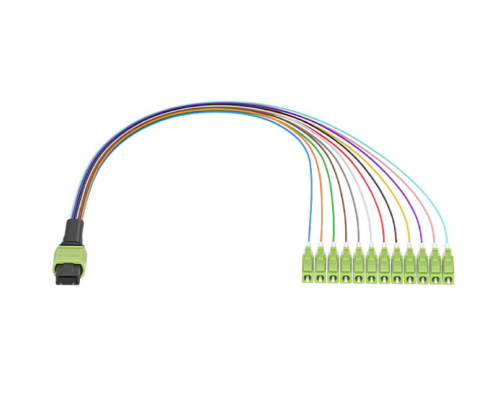

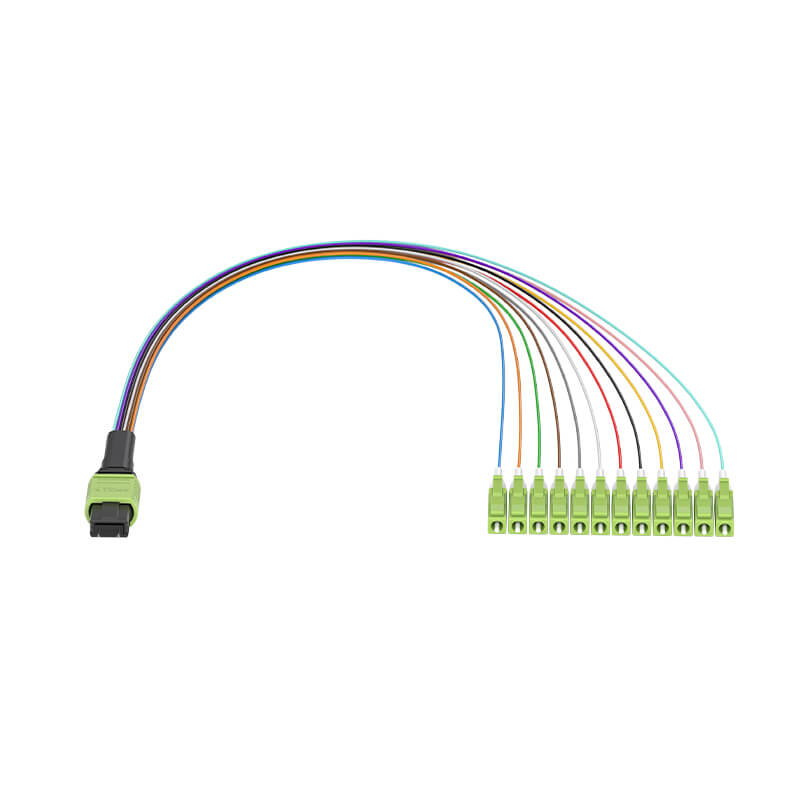

Product name: MPO/PC/Male-LC/UPC-OM5 Multimode 12 Fiber 0.9mm Fanout Patch Cord

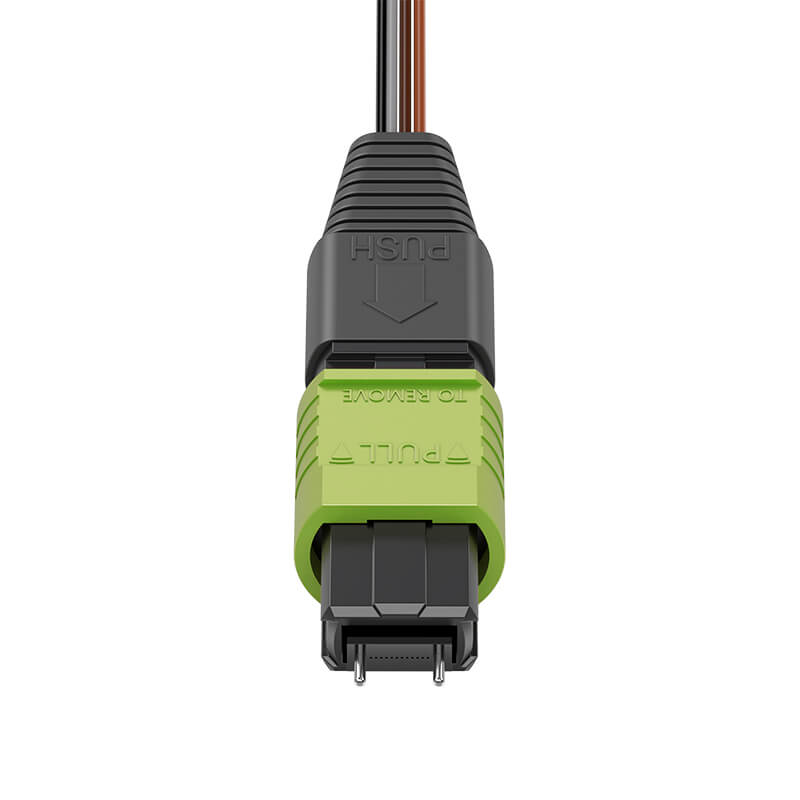

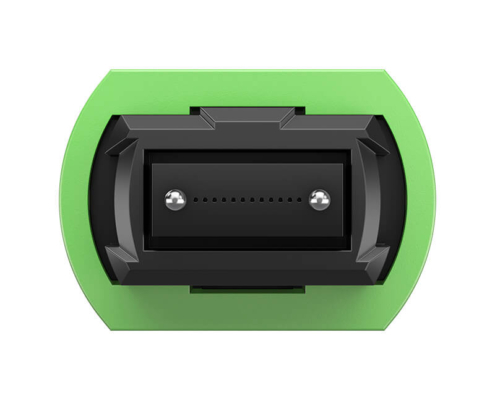

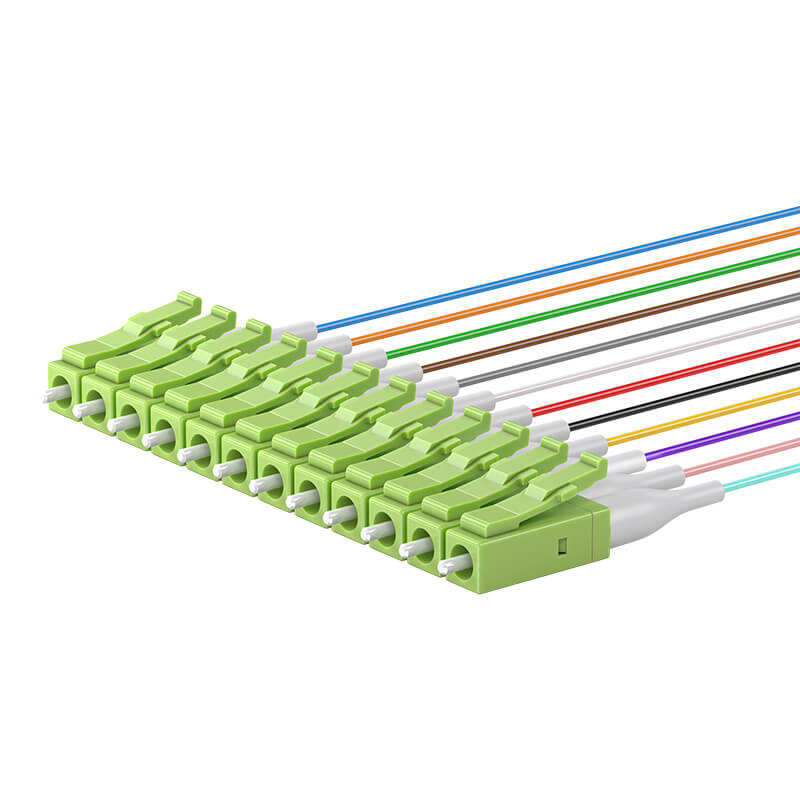

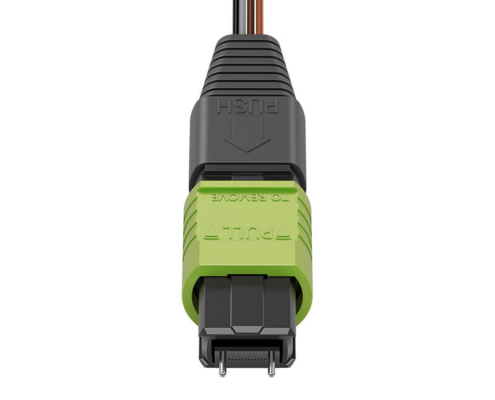

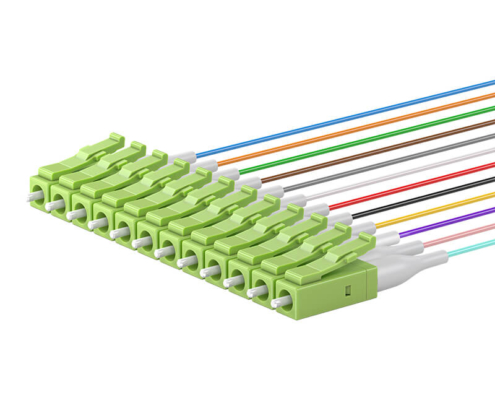

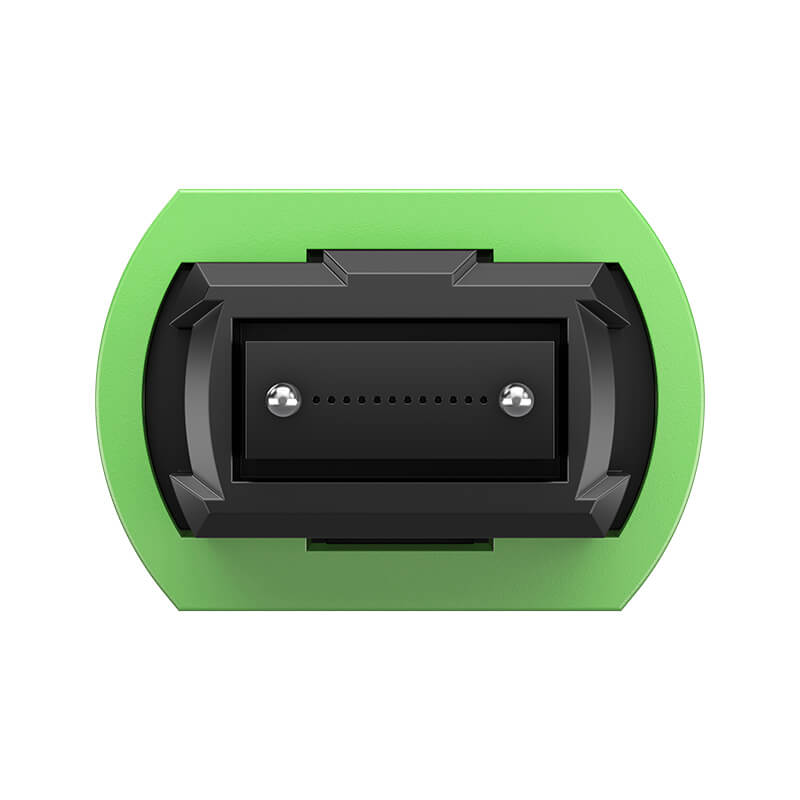

Connector type: A-end: MPO/MTP/UPC/female-12 core, B-end: LC/UPC/female-12 core
Number of fiber cores: 12 cores
Fiber model: OM5-50/125um
Operating temperature: -10~+70°C (14~158°F)
Outer jacket material: Low smoke zero halogen (LSZH)
Optical cable outer diameter: 0.9mm
Operating wavelength: 850nm
Insertion loss: Standard loss ≤0.75dB, low loss ≤0.35dB
Return loss dB: >30dB (UPC)
Repeatability dB: ≤0.1dB
