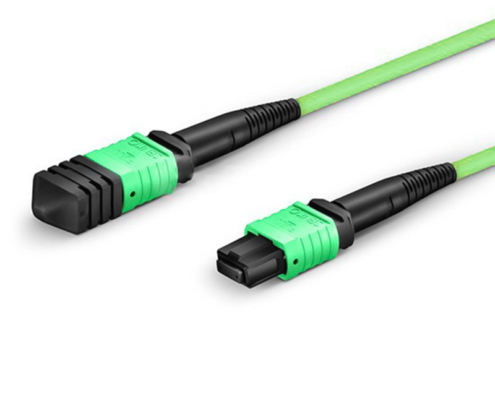

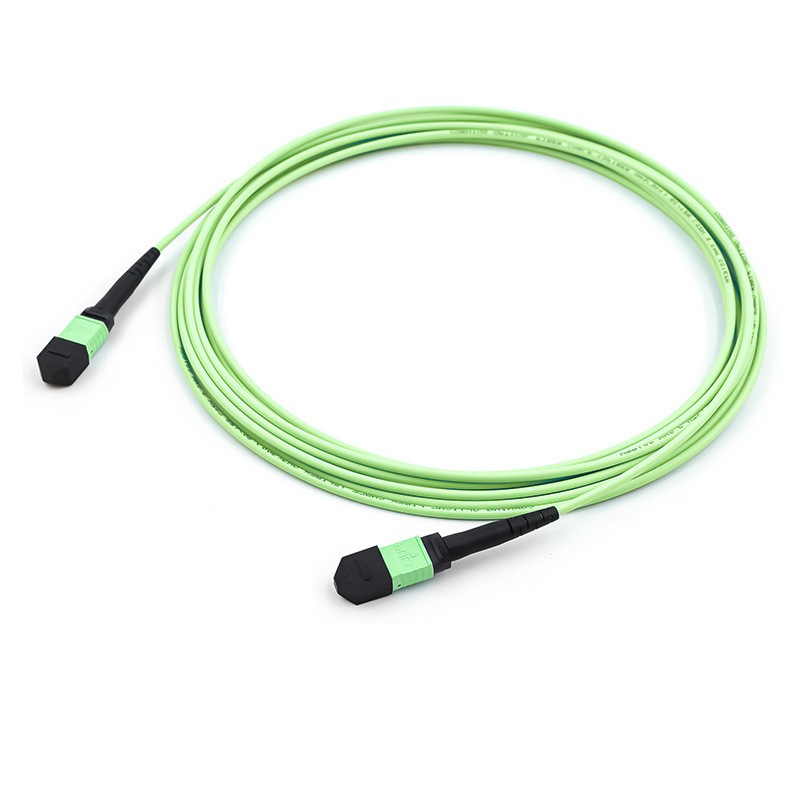

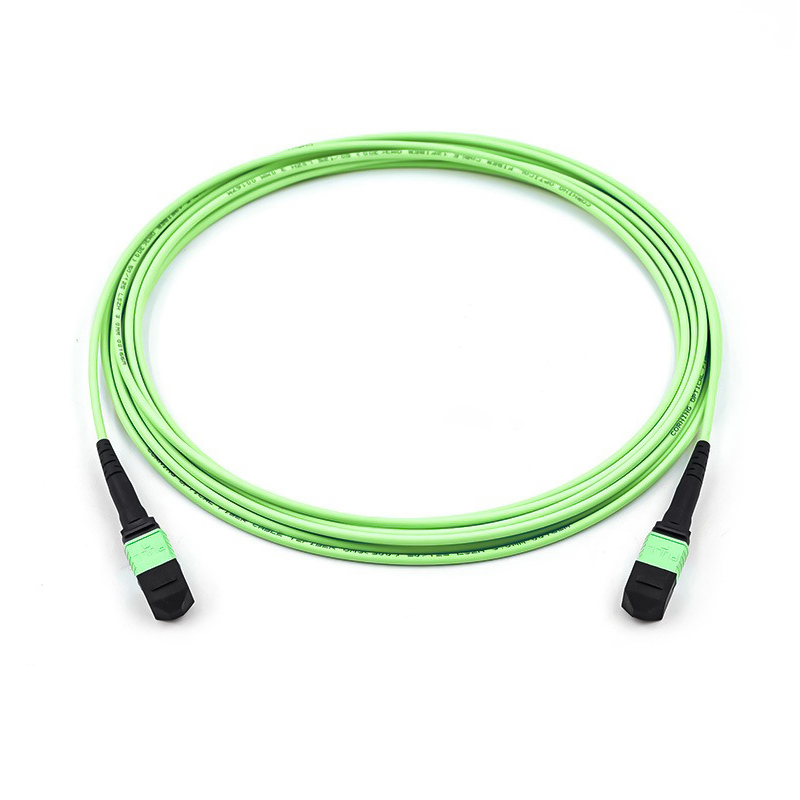

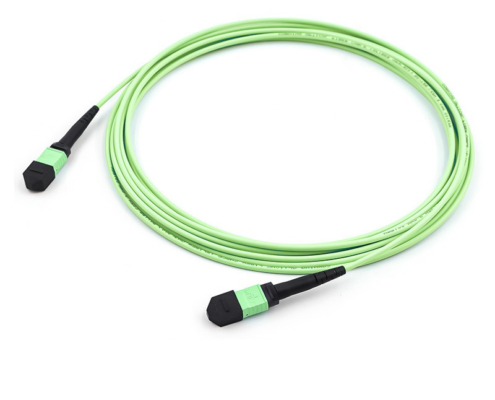

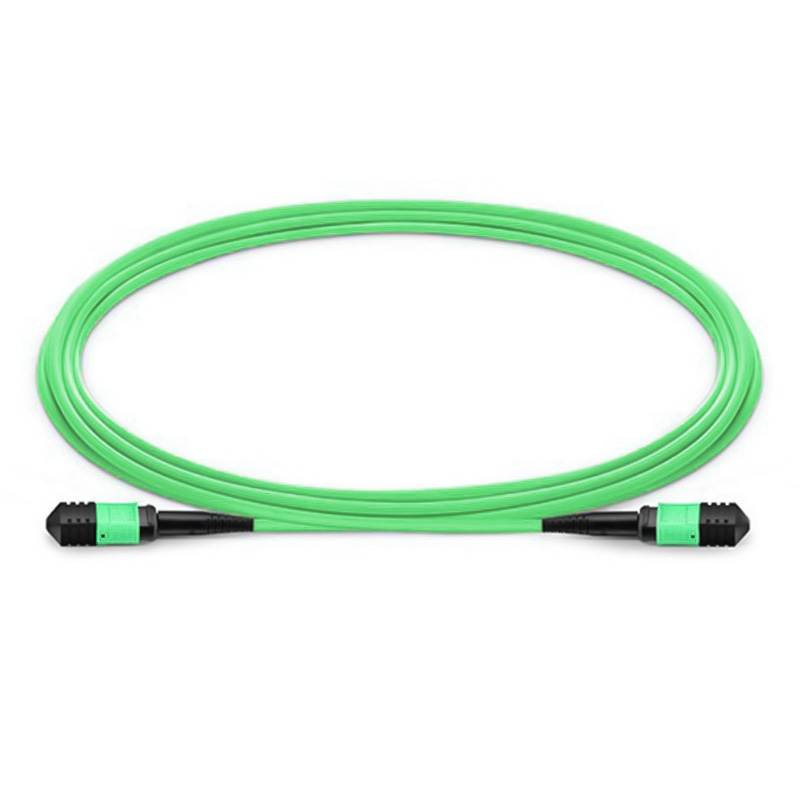

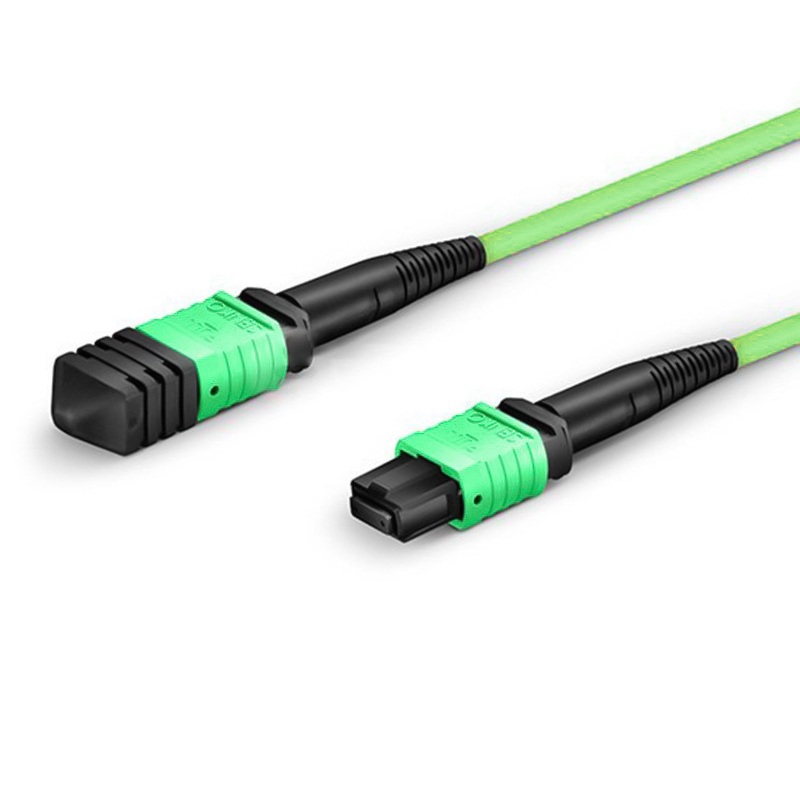

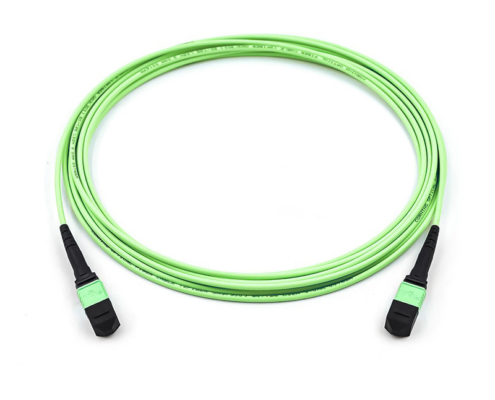

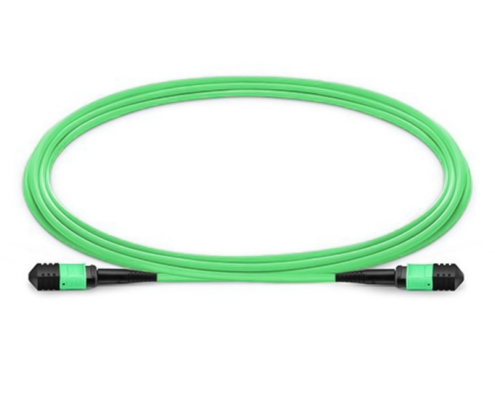

Product name: MPO/MTP-OM5 Multimode 8/12 Fiber -3.0mm Trunk Cable Extended Fiber Optic Patch Cord

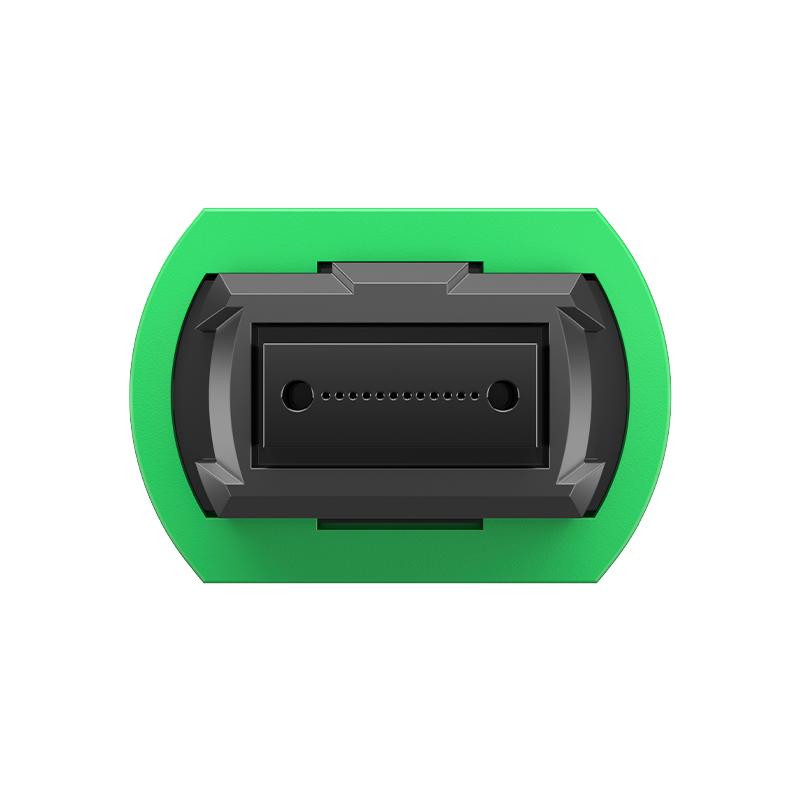

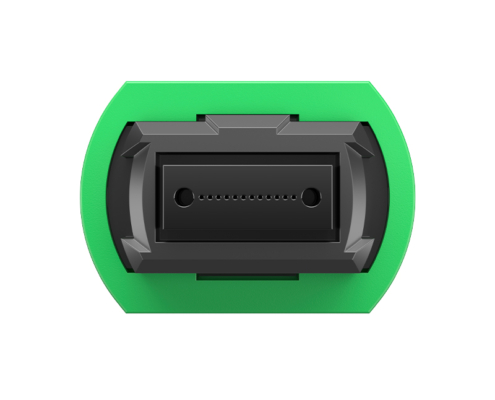

Connector type: A end: MPO/MTP/UPC/female-12 core, B end: MPO/MTP/UPC/female-12 core
Number of optical fiber cores: 8/12 cores
Optical fiber model: OM5-50/125um
Insert material: Plastic
Operating temperature: -10~+70°C(14~158°F)
Outer material: Low smoke zero halogen (LSZH)
Optical cable outer diameter: 3.0mm
Operating wavelength: 850nm
Insertion loss: Standard loss ≤0.75dB, low loss ≤0.35dB
Return loss dB: >30dB(UPC)
Repeatability dB: ≤0.1dB
