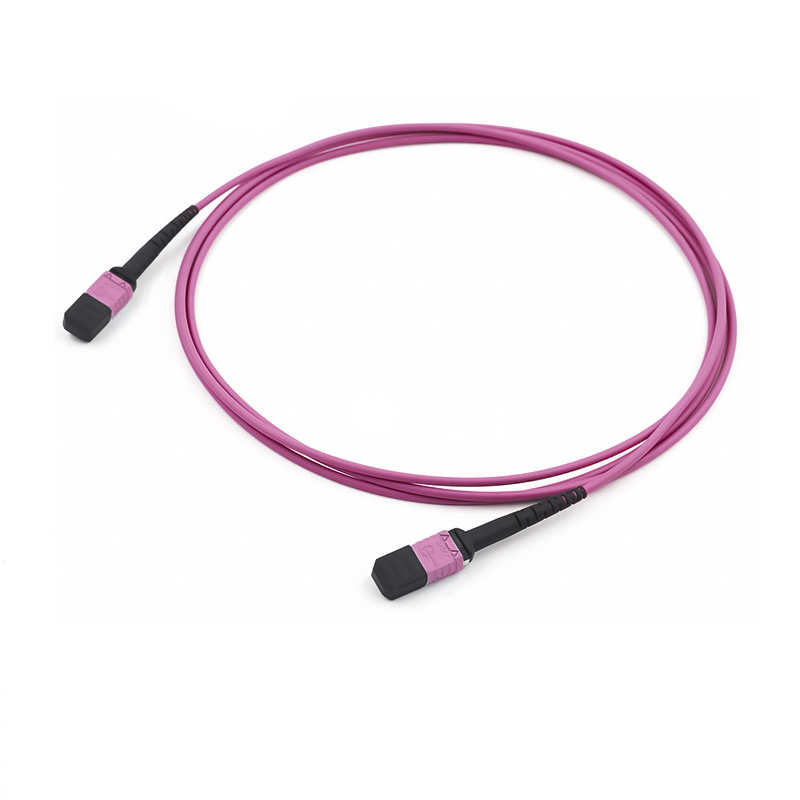

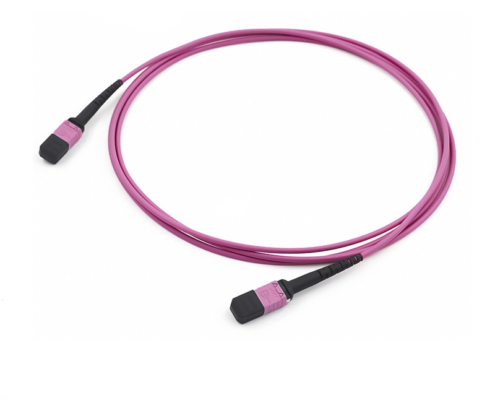

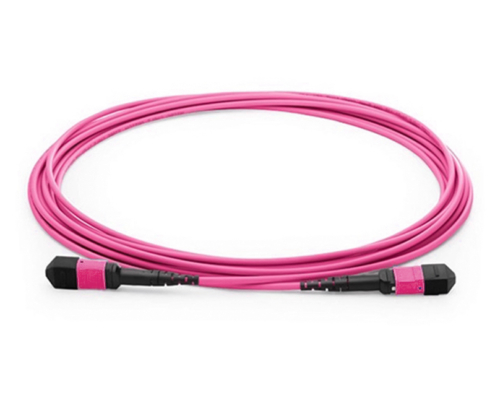

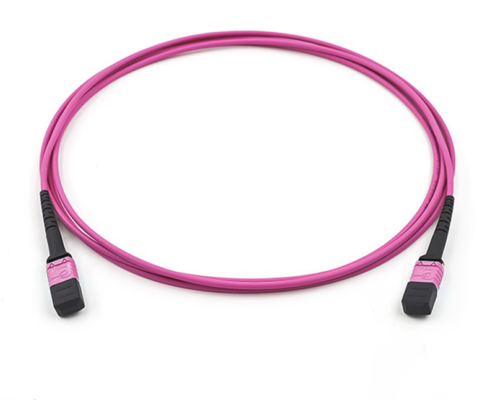

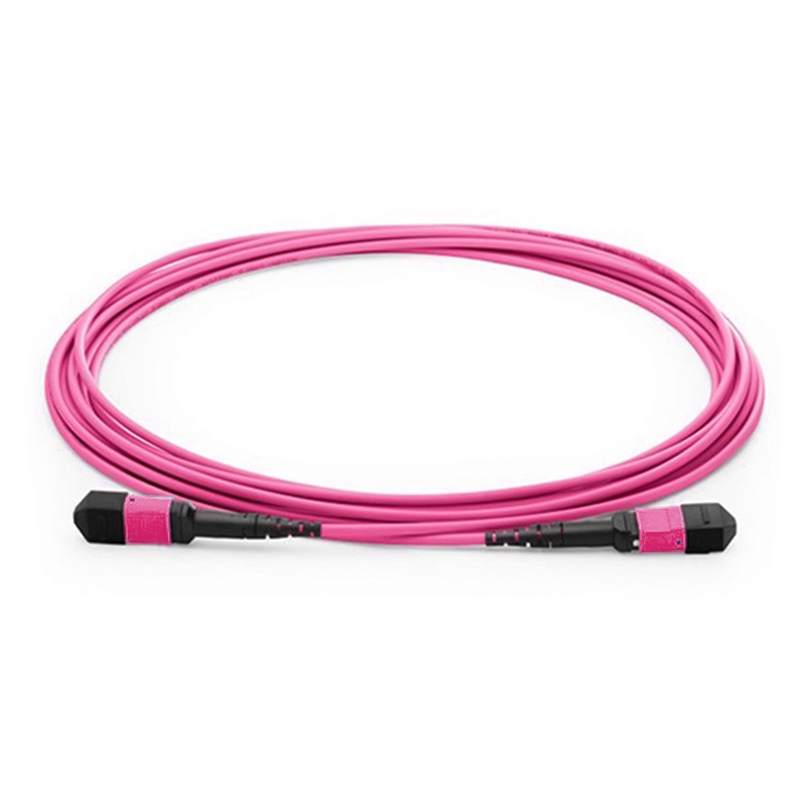

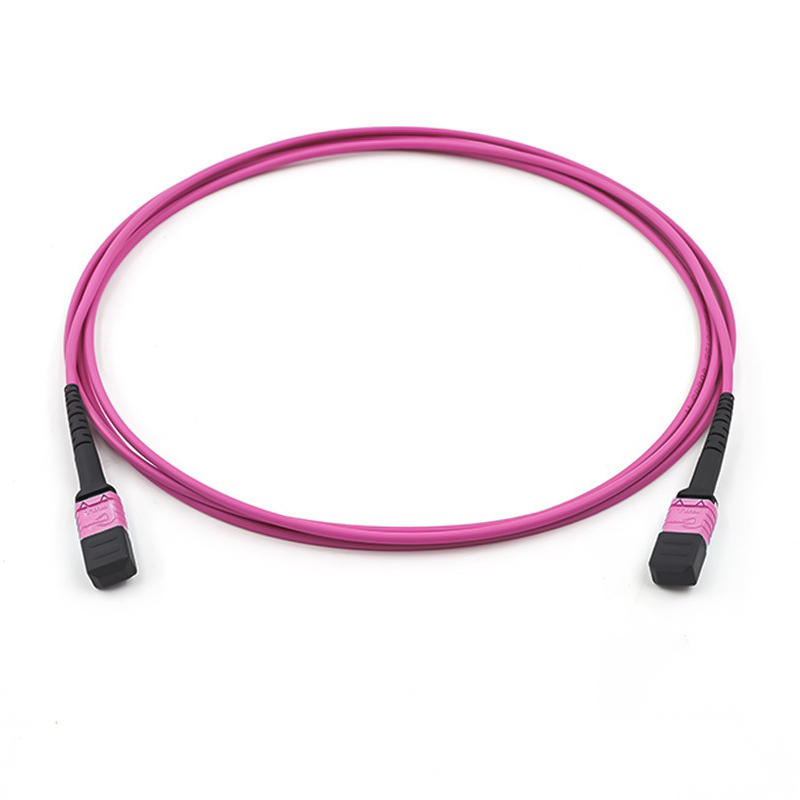

MPO/MTP-OM4 Multimode 16 Fiber -3.0mm Trunk Cable Extended Fiber Optic Patch Cord

Product Name: MPO/MTP-OM4 Multimode 16 Fiber-3.0mm Trunk Cable Extended Fiber Optic Patch
Cord

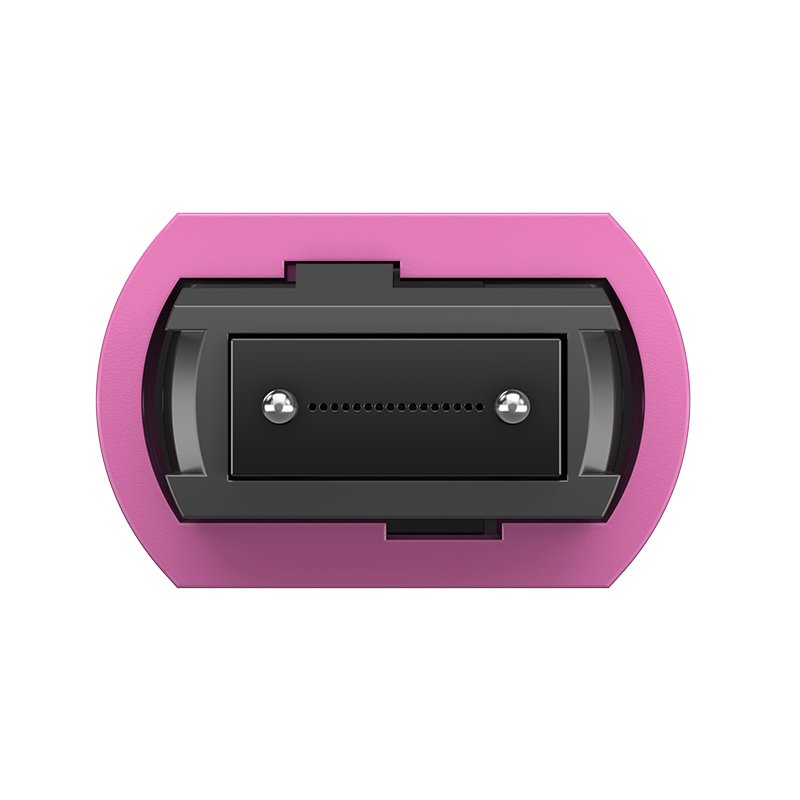

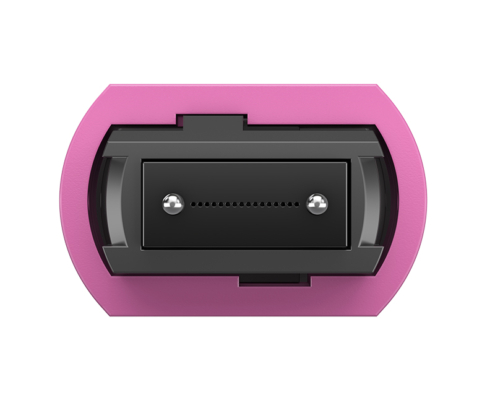

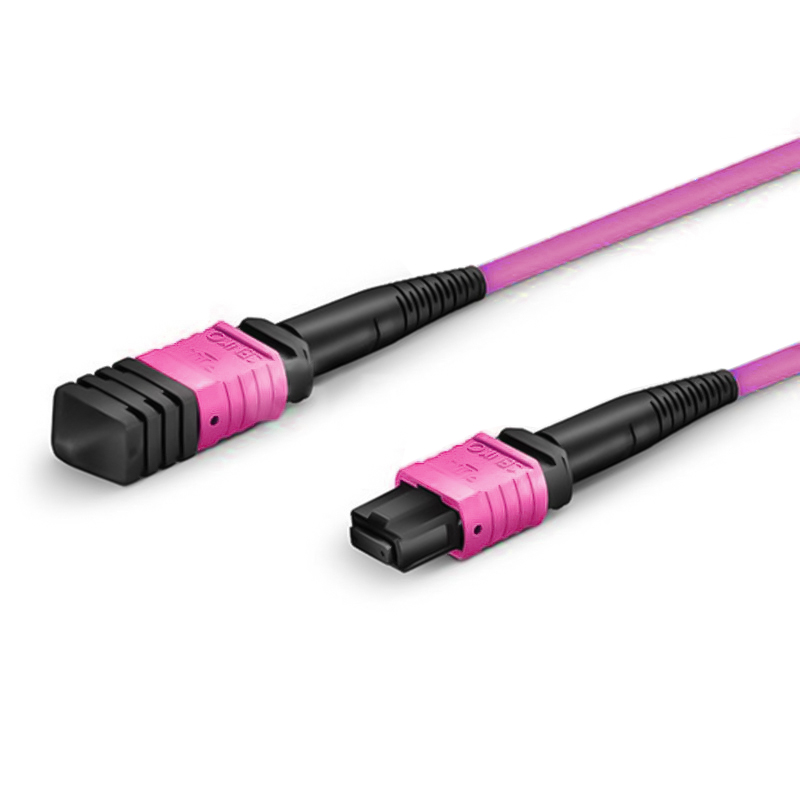

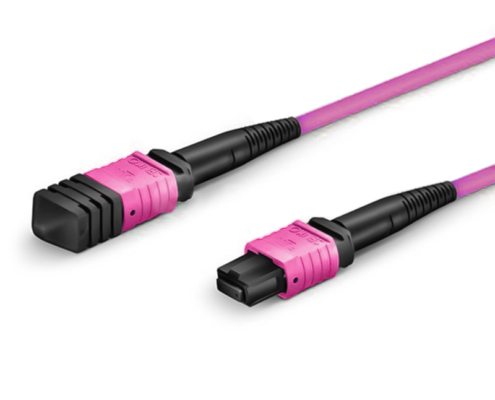

Connector Type: A-end: MPO/MTP/UPC/female-16 core, B-end: MPO/MTP/UPC/female-16 core
Number of Fiber Cores: 16 cores
Fiber Model: OM4-50/125um
Insert Material: Plastic
Operating Temperature: -10~+70°C(14~158°F)
Outer jacket material: Low smoke zero halogen (LSZH)
Optical cable outer diameter: 3.0mm
Operating wavelength: 850nm
Insertion loss: Standard loss ≤0.75dB, low loss ≤0.35dB
Return loss dB: >30dB(UPC)
Repeatability dB: ≤0.1dB

Request Formal Quote

Share this product

Description Technical Data FAQ

Applications:

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical

Key Features:

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

Quality Assurance:

Our Patch Cords undergo rigorous testing to ensure they meet the highest standards of quality and performance. Quality assurance measures include:

- Performance Testing: Verifying data transmission rates and signal integrity to guarantee reliable connectivity.
- Durability Testing: Assessing the physical robustness of the cord to withstand harsh environmental conditions and mechanical stress.

What makes these patch cords waterproof?
- Our patch cords are equipped with advanced sealing technology and are rated IP67/IP68, ensuring complete protection against water and dust ingress.
Can these cords be used in extreme temperatures?
- Yes, our waterproof patch cords are designed to operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F).
Do you offer different cable lengths?
- Yes, our waterproof patch cords are available in various lengths to meet different installation requirements.
