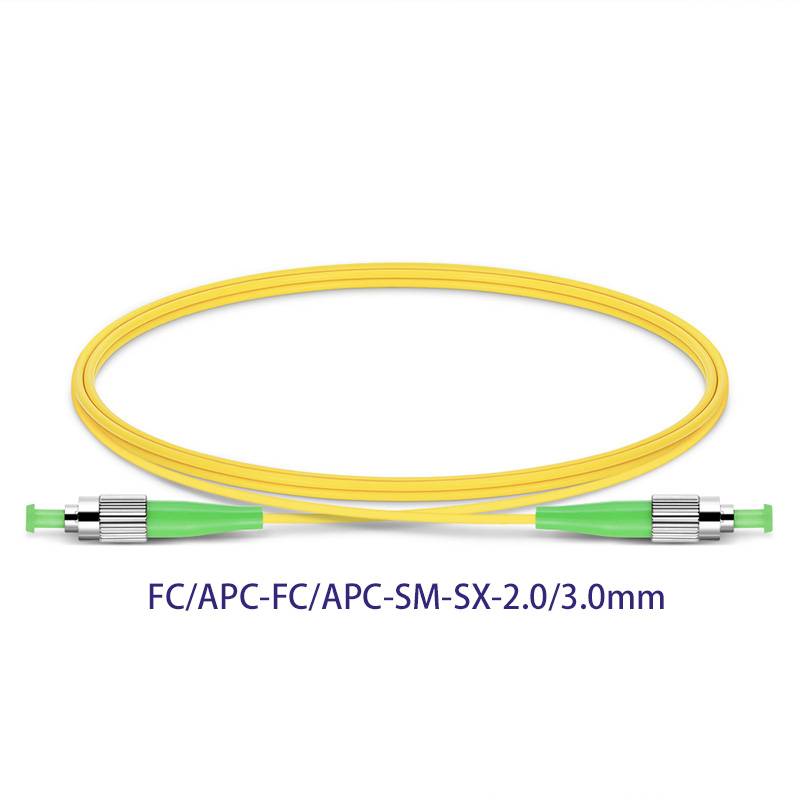

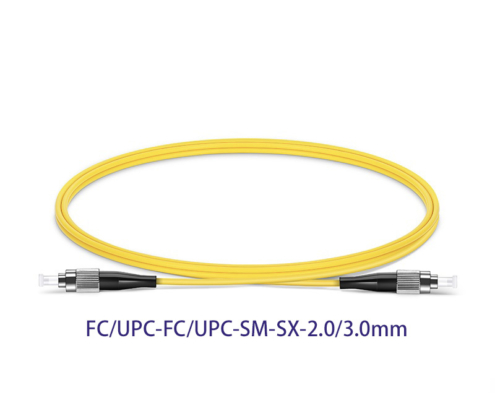

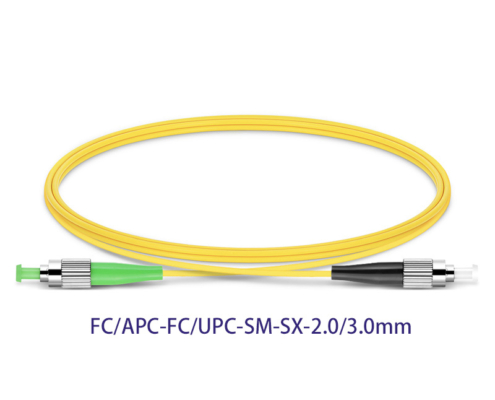

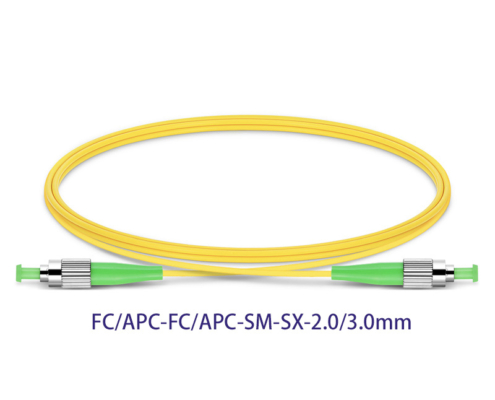

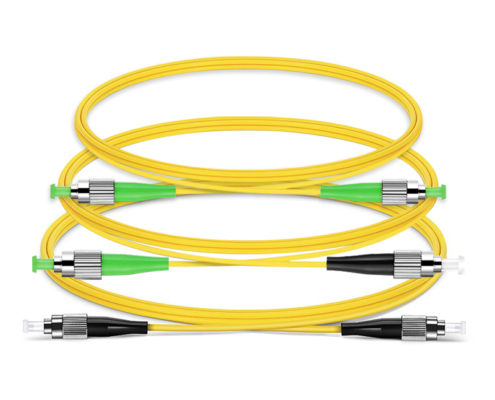

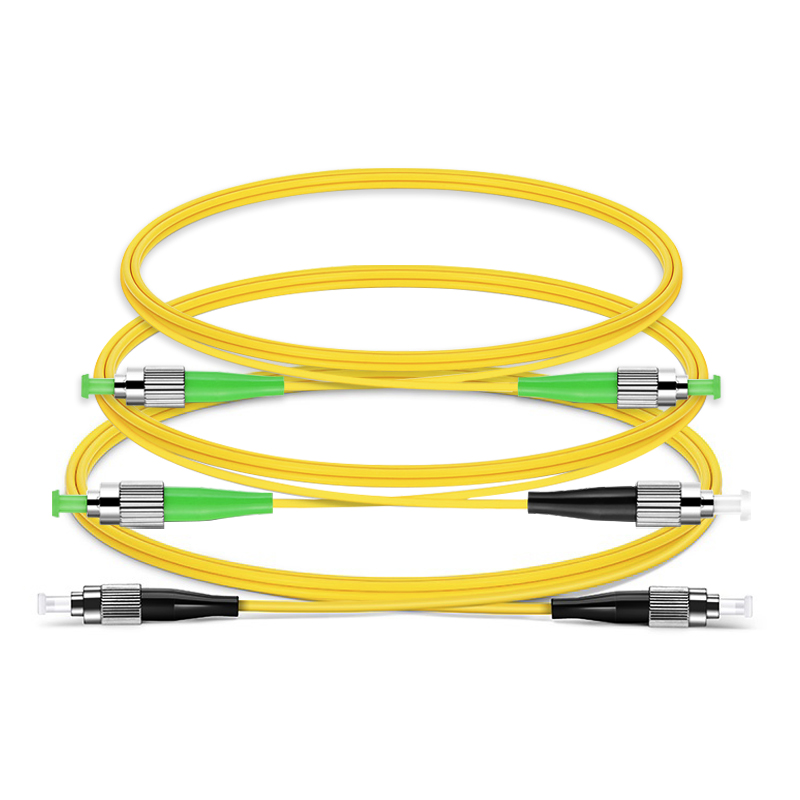

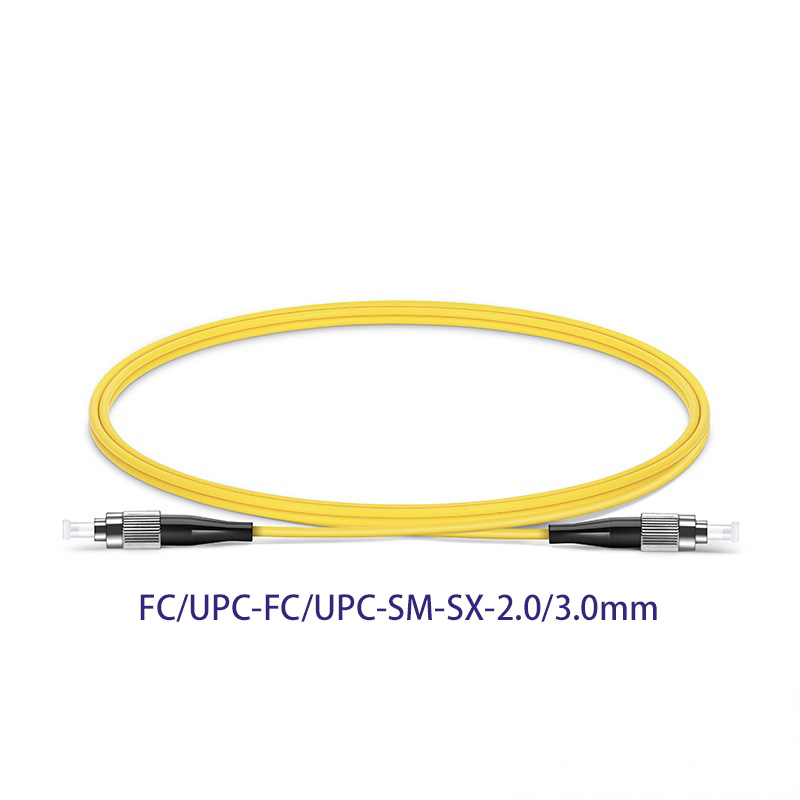

FC Telecommunication-Grade Low-Loss Single Mode Simplex 2.0-3.0mm Indoor PVC/LSZH Yellow Fiber Patch Cord

FC-FC Indoor single-mode simplex fiber optic patch cord

Product name: Indoor patch cord
A-end connection model: FC/UPC (blue), FC/APC (green)
B-end connection model: FC/UPC (blue), FC/APC (green)
Optical cable model: GJFJV-2.0/3.0mm indoor single-mode simplex fiber cable
Insertion loss: ≤0.2dB
Return loss: UPC>55.0dB, APC>55.0dB
Operating temperature: -30℃—+80℃
Storage temperature: -40’℃-+80°C
Product standard: FC:YD/T 1272.4-2018

Request Formal Quote

Share this product

Description Technical Data FAQ

Applications:

1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical

Key Features:

1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard

Quality Assurance:

Our Patch Cords undergo rigorous testing to ensure they meet the highest standards of quality and performance. Quality assurance measures include:

- Performance Testing: Verifying data transmission rates and signal integrity to guarantee reliable connectivity.
- Durability Testing: Assessing the physical robustness of the cord to withstand harsh environmental conditions and mechanical stress.

What makes these patch cords waterproof?
- Our patch cords are equipped with advanced sealing technology and are rated IP67/IP68, ensuring complete protection against water and dust ingress.
Can these cords be used in extreme temperatures?
- Yes, our waterproof patch cords are designed to operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F).
Do you offer different cable lengths?
- Yes, our waterproof patch cords are available in various lengths to meet different installation requirements.
