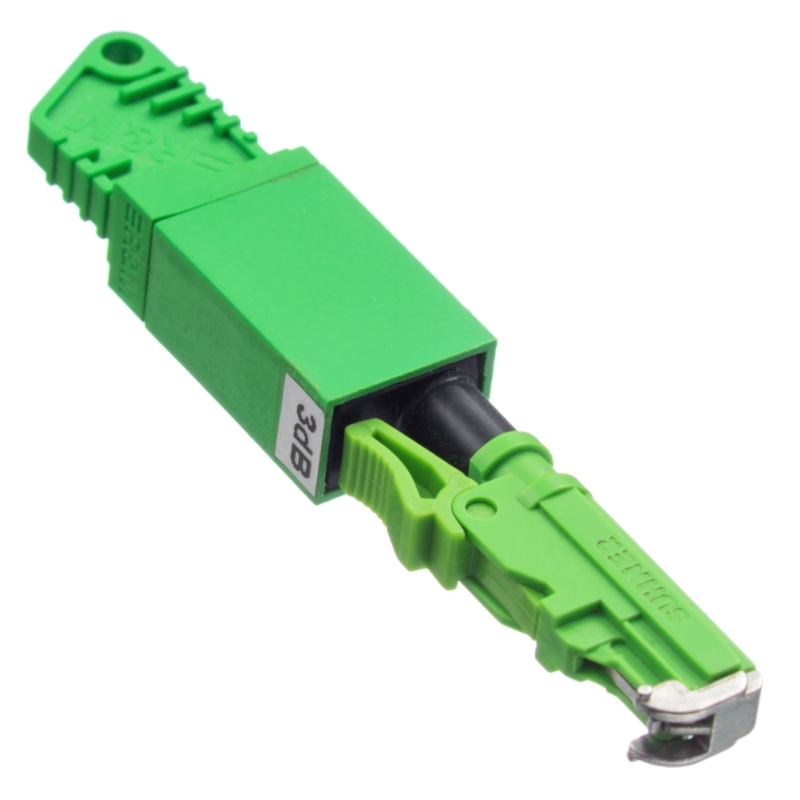

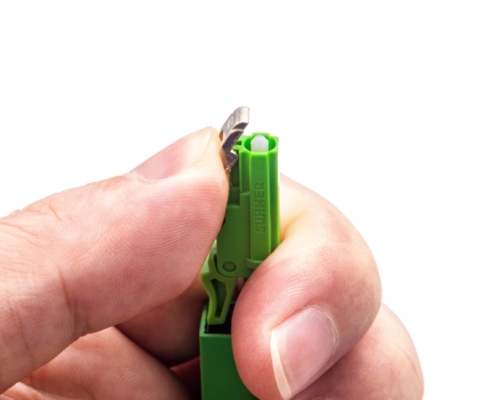

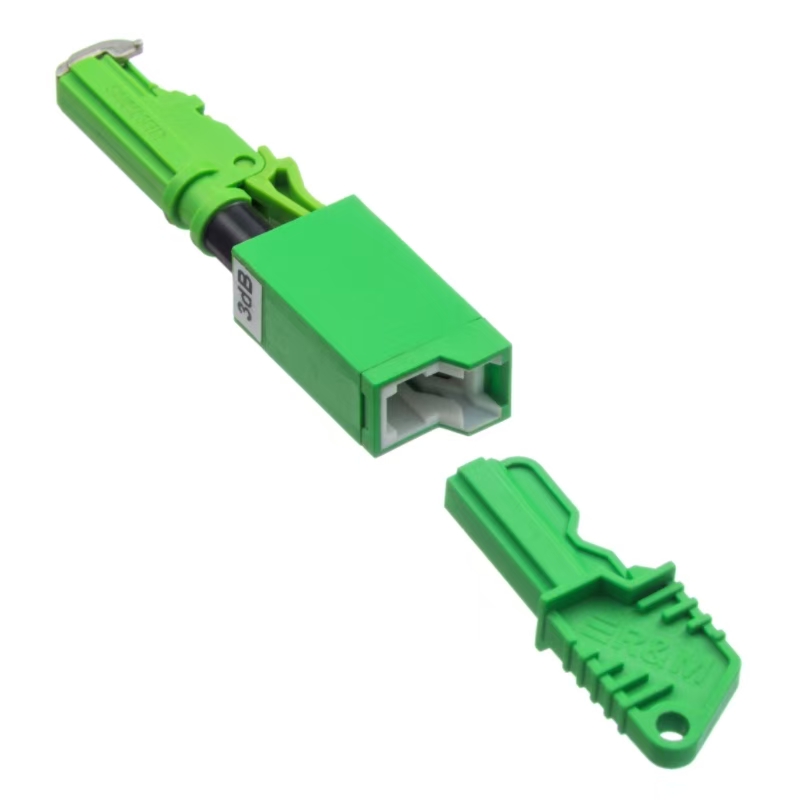

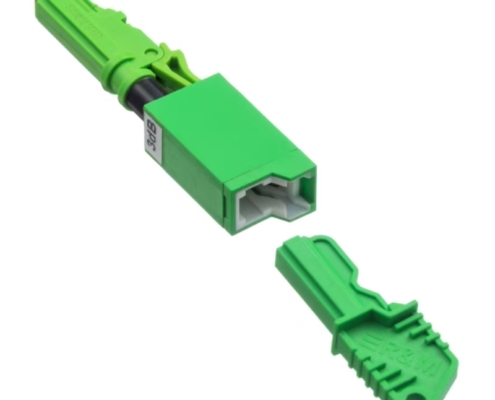

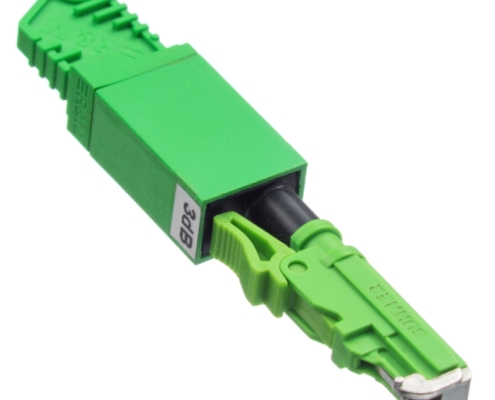

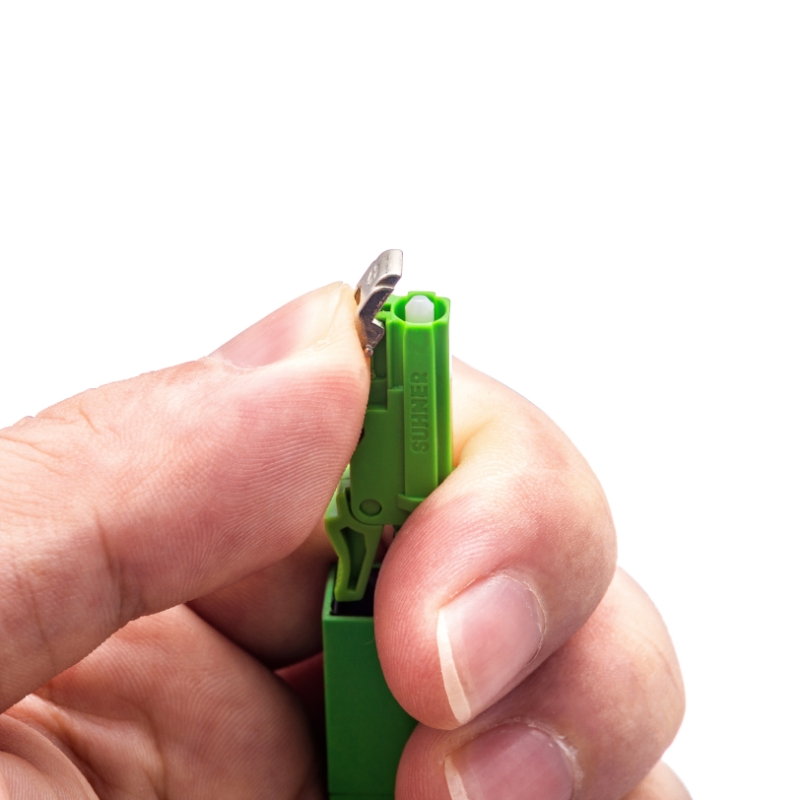

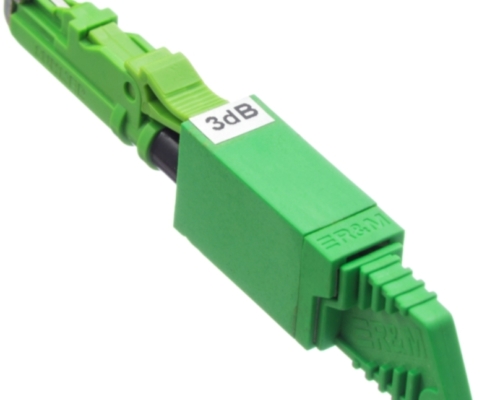

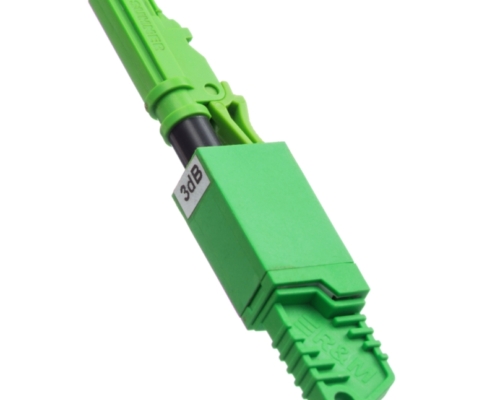

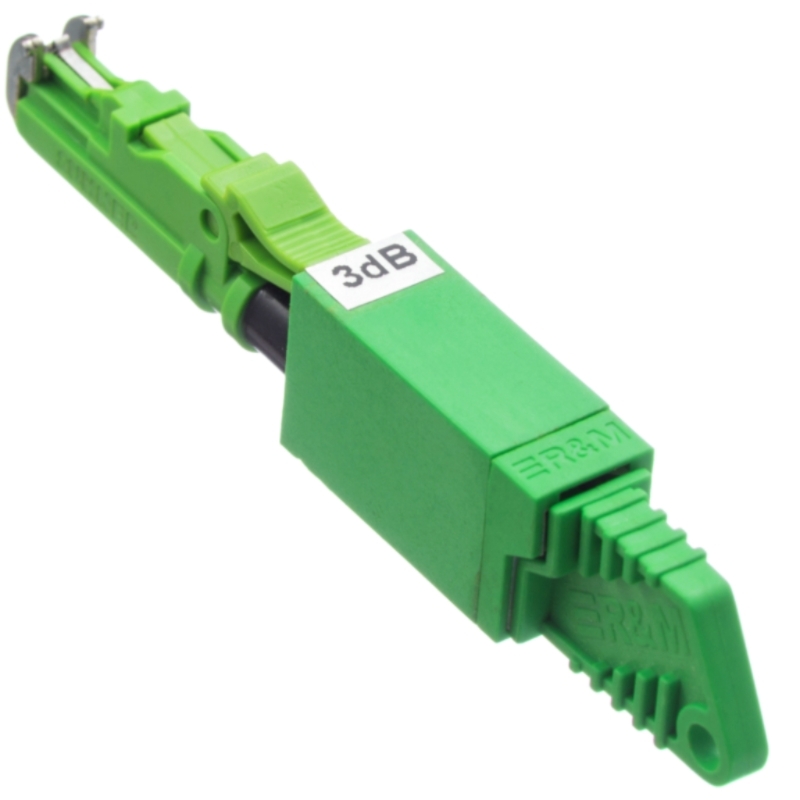

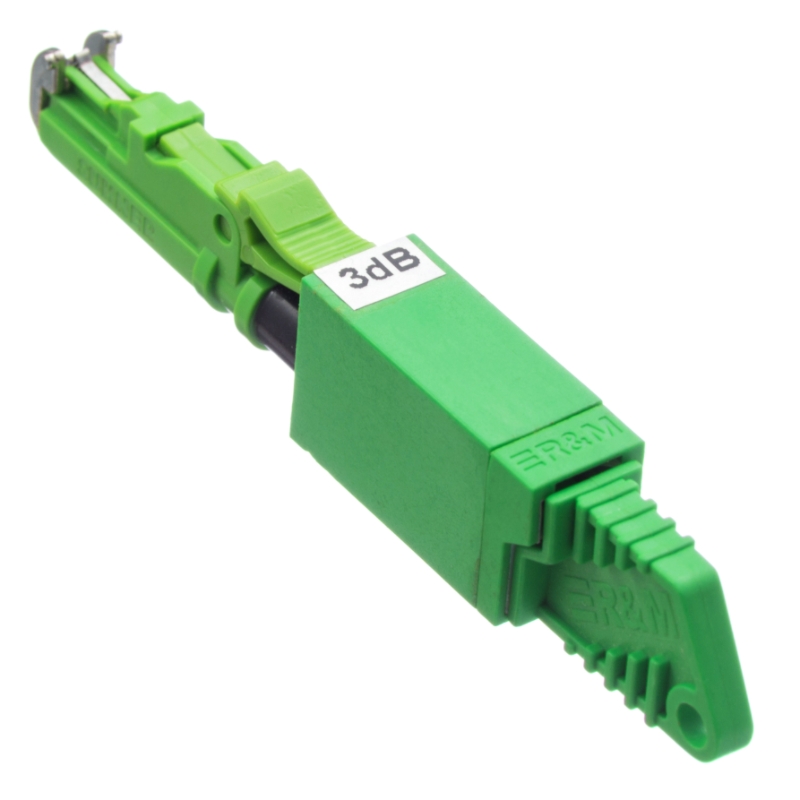

E2000/APC Male/Female Optical Attenuator 0-30db

Working wavelength nm：1310 or 1550

Return loss: dB ≥60

Attenuation and accuracy: ±0.5db within 5db, ±10% above 5db

Input/output form: FC, SC, ST, LC

Temperature range ℃: -40～+80[2]

Product Features:
It adopts attenuating optical fiber, with good performance;
Simple and compact structure, easy to install;
Stable performance, high reliability;
High reflection loss, low insertion loss;

The attenuator has the following basic uses:

1) Control power level: Control the output power of the local oscillator in the microwave superheterodyne receiver to obtain the best noise figure and frequency conversion loss, and achieve the best reception effect. In the microwave receiver, realize automatic gain control and improve the dynamic range.

2) Decoupling element: As a decoupling element between the oscillator and the load.

3) Relative standard: As a relative standard for comparing power levels.
4) Stepwise Variable Optical Attenuator used in radar anti-interference: It is a variable attenuator with sudden change in attenuation. It does not introduce attenuation at ordinary times, but suddenly increases attenuation when encountering external interference. From the perspective of microwave network, the attenuator is a two-port lossy microwave network. It belongs to the through-type microwave element.
